AP gun parts

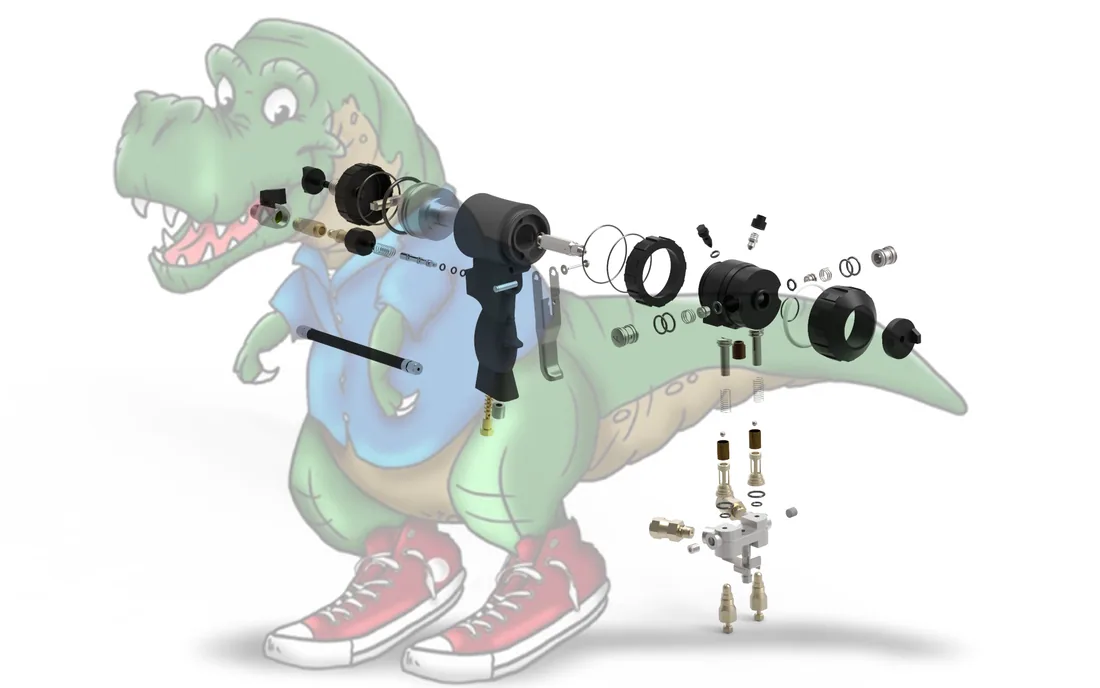

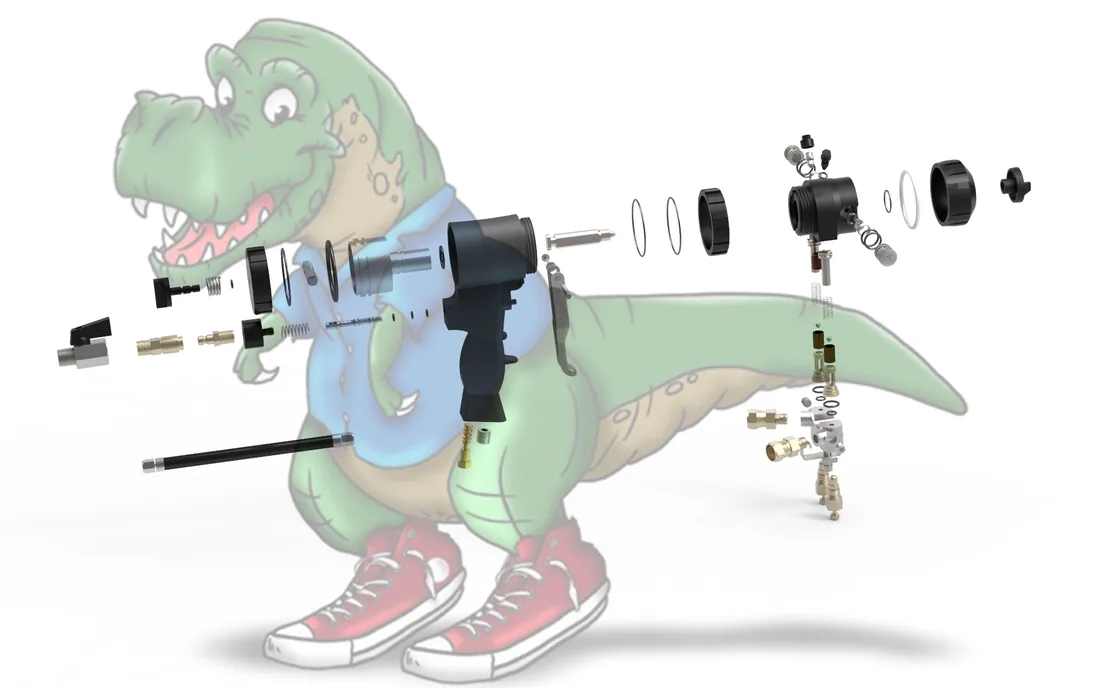

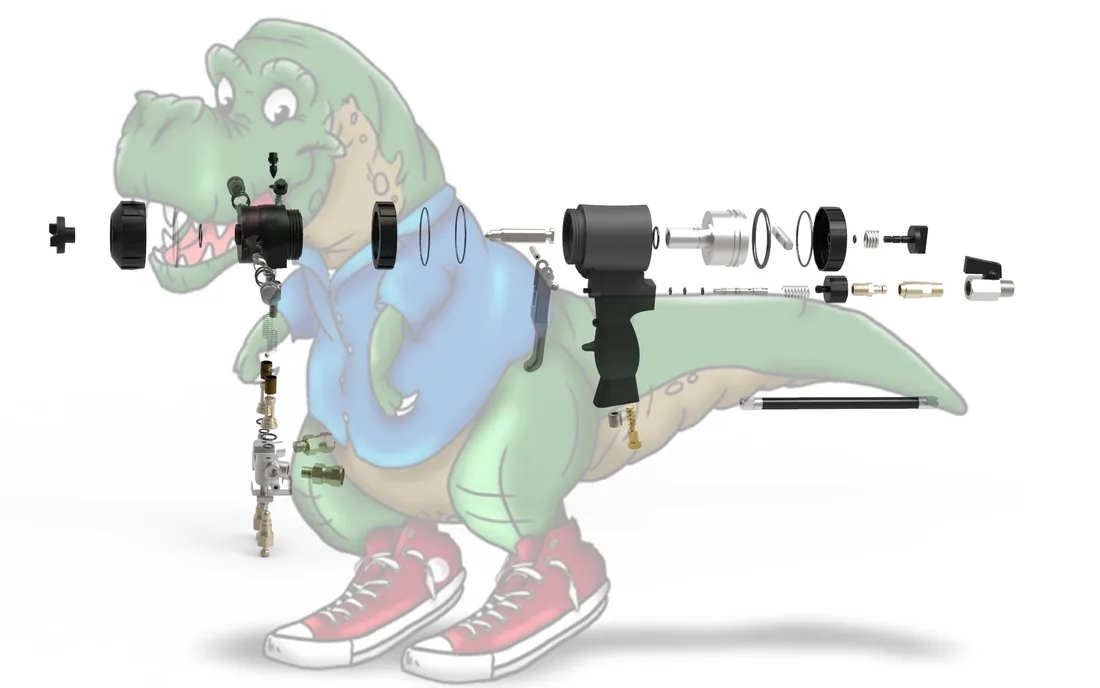

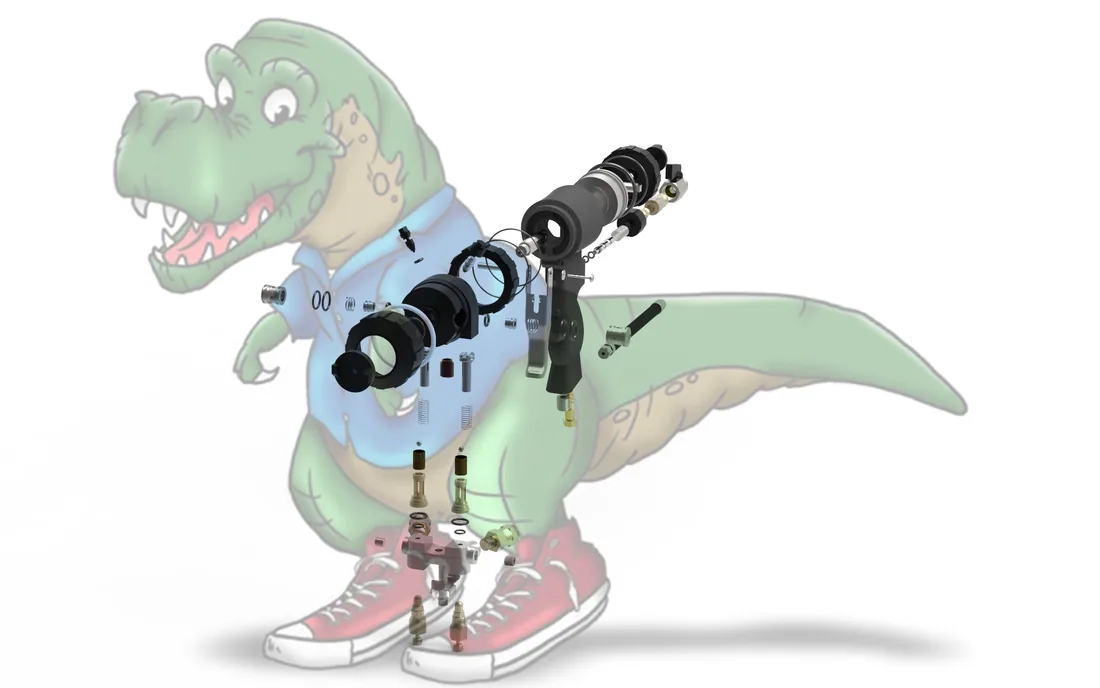

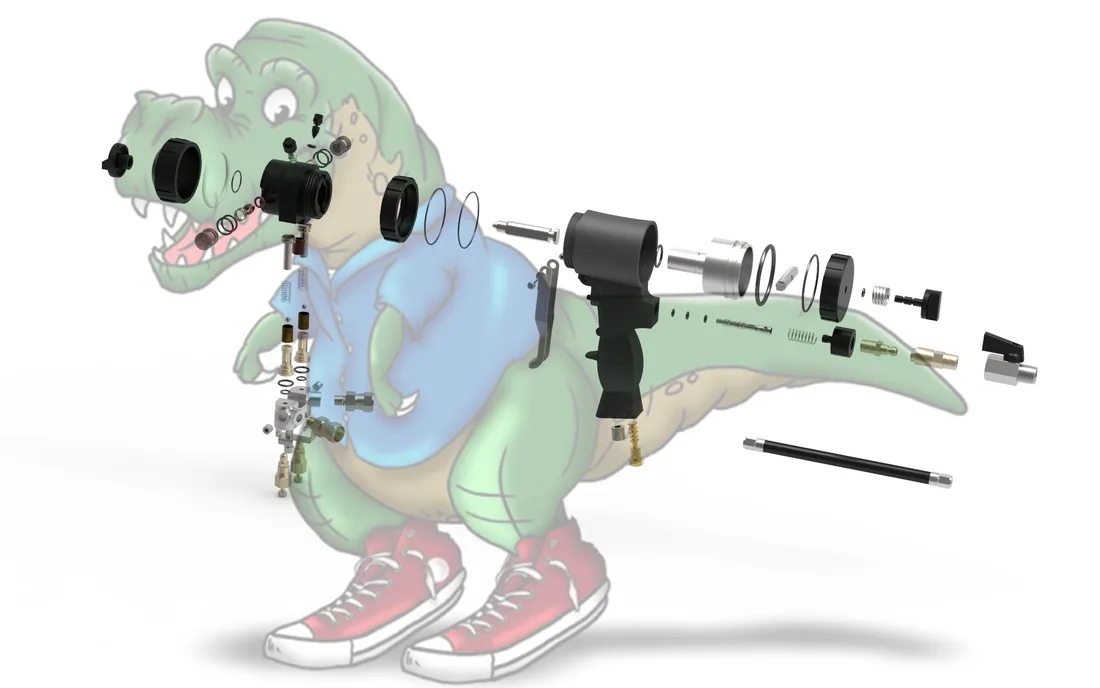

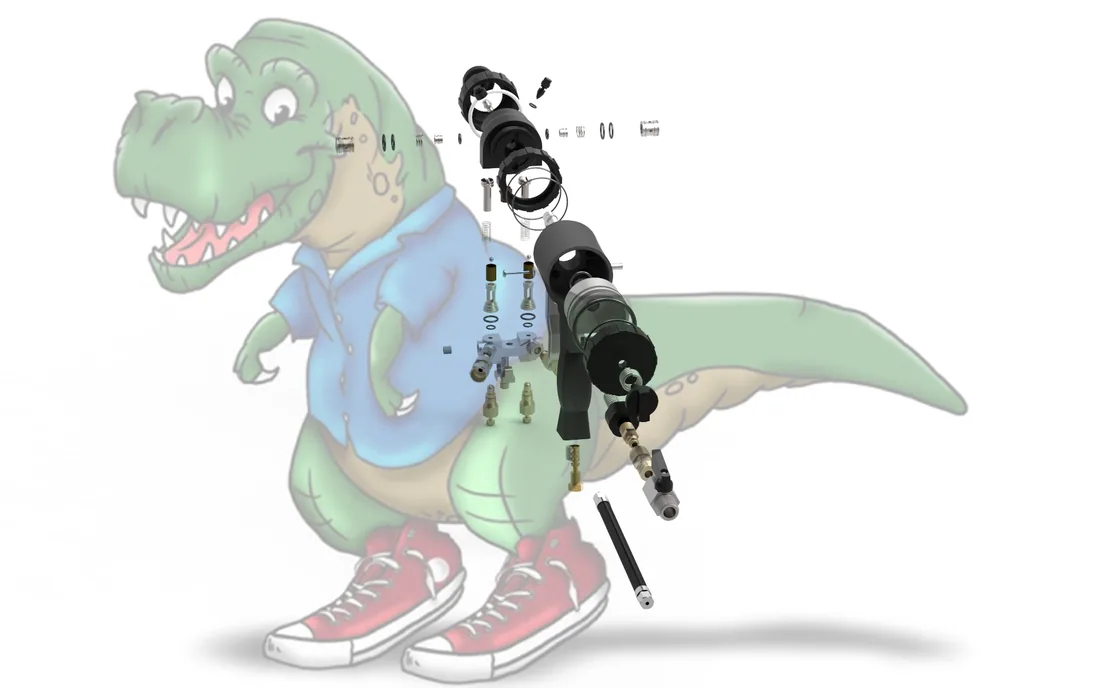

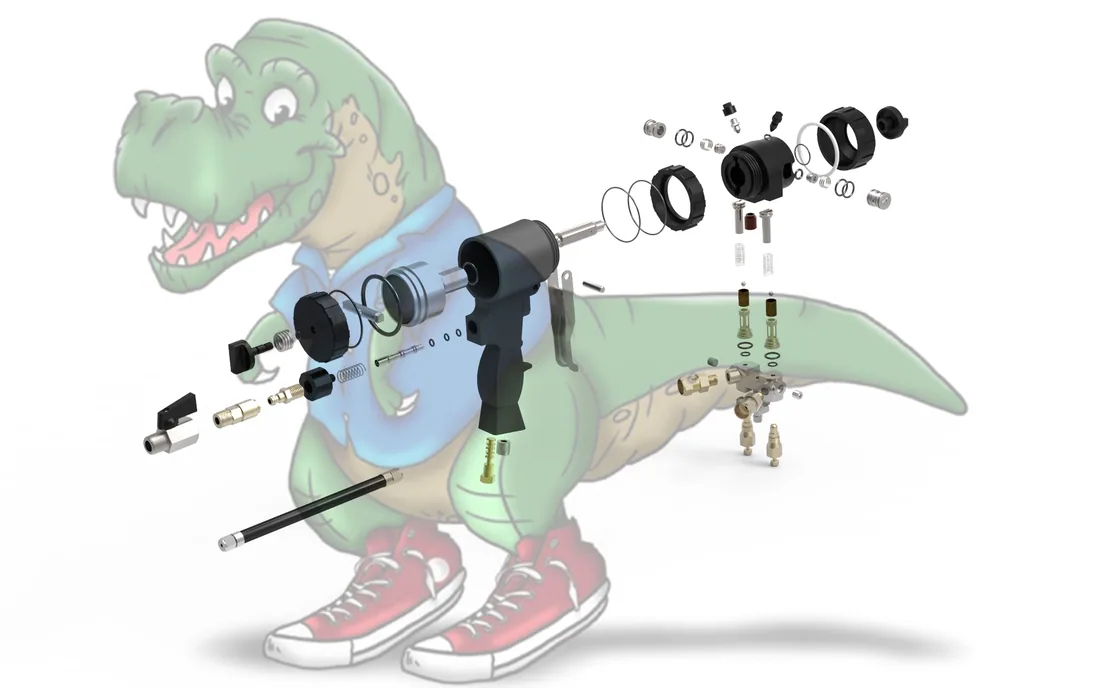

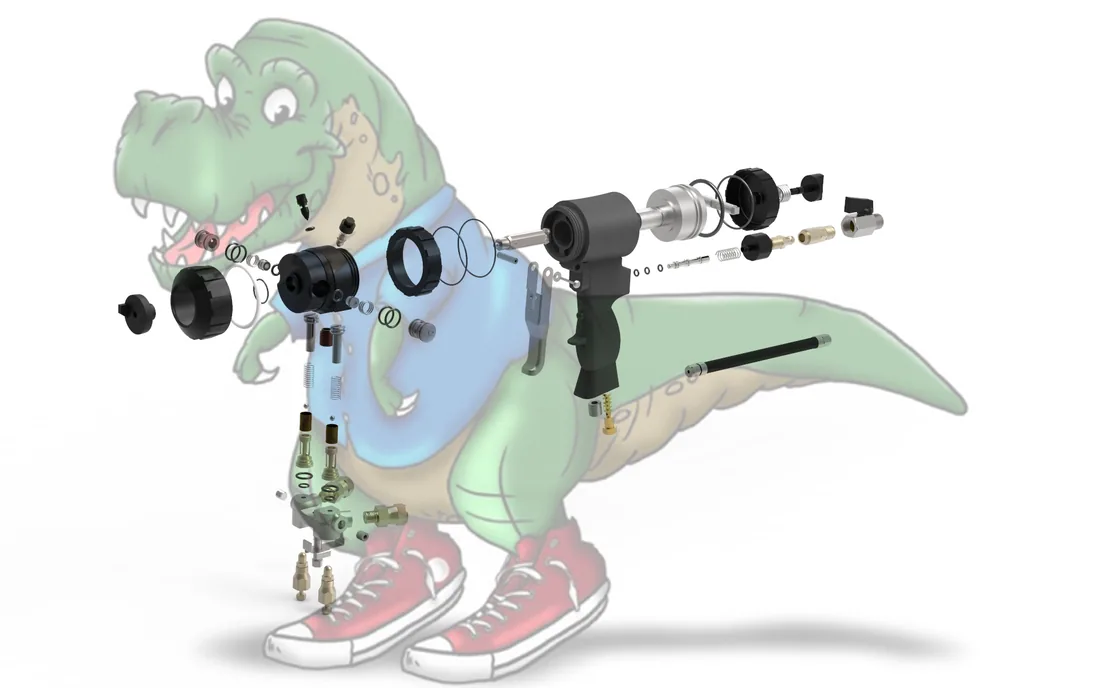

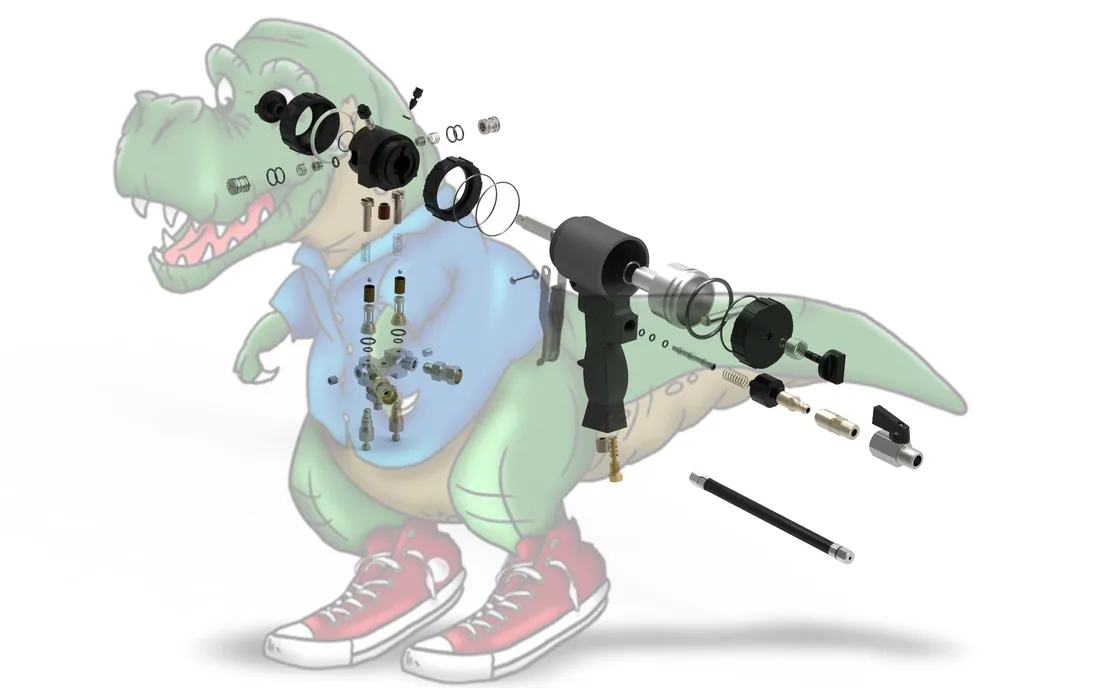

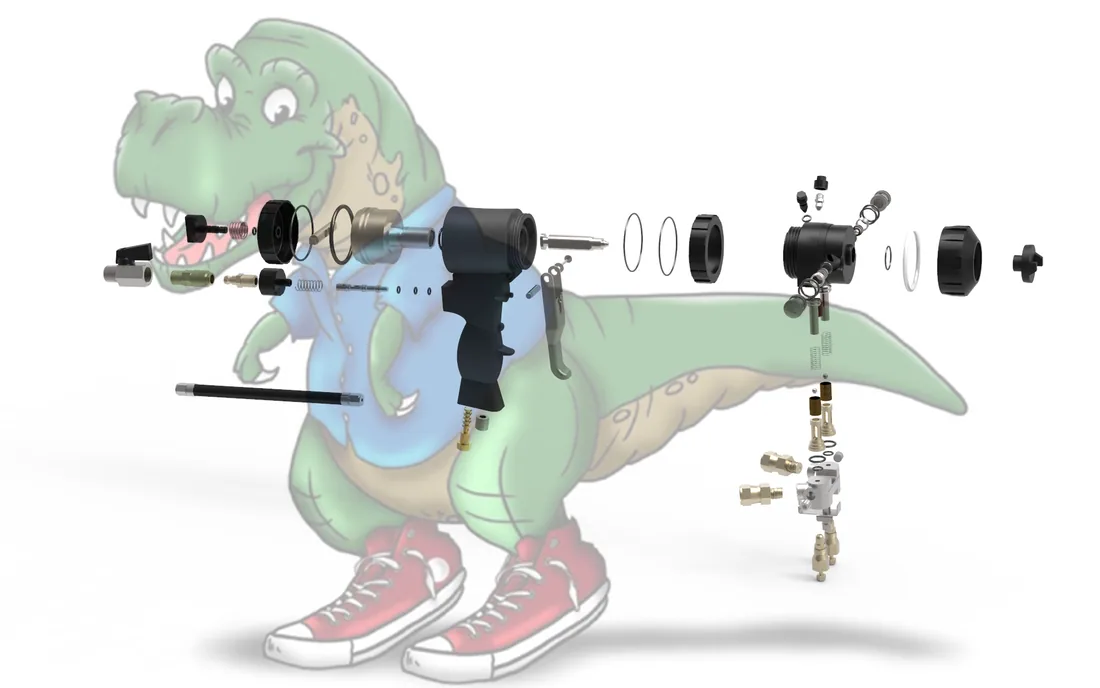

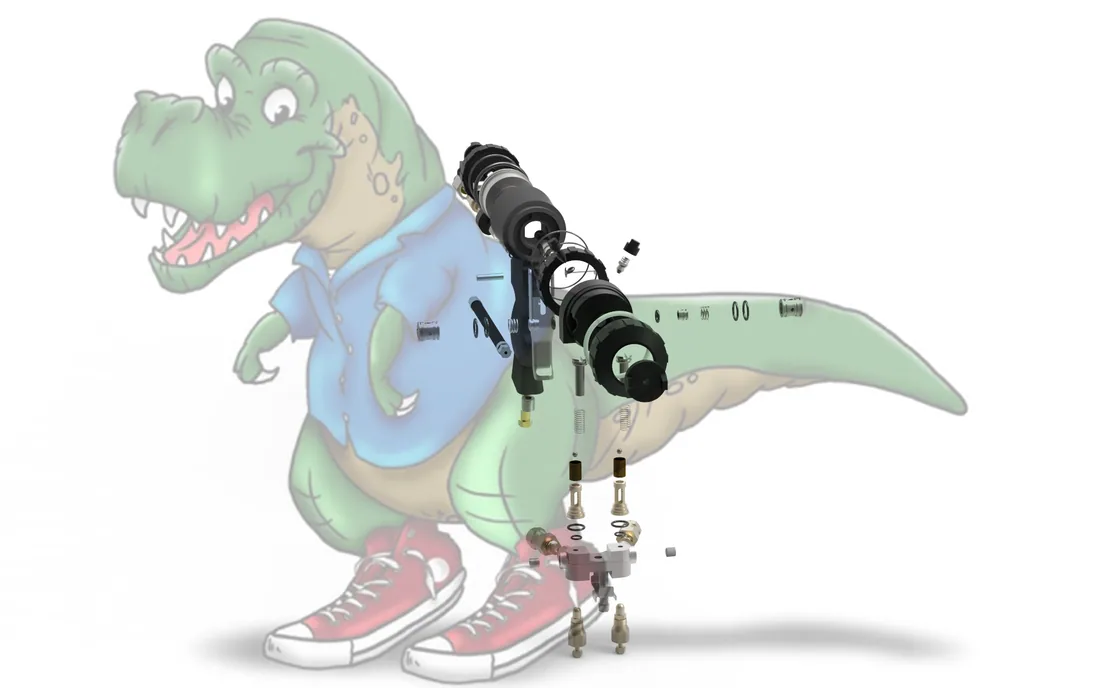

Tap or click a part on the exploded view to see the matching part numbers, prices and whether each option is genuine OEM or Cortez-made. Use the arrows to turn the gun and reach parts hidden in the labelled view.

Labelled
AP gun parts, labelled exploded view AP Manifold Plug 100139 AP Handle Plug 100721 AP Grease Nipple 100846 AP Safety Spring 114070 AP Lock Ring Spring 116550 AP Trigger Spring 117485 AP Check Valve Spring 117490 AP Side Seals Spring 117491 AP Quick Connect - Male 117509 AP Quick Connect - Female 117510 AP Manifold B Side Swivel 117634 AP Manifold A Side Swivel 117635 AP Handle Muffler 119626 AP Trigger Pin 192272 AP Trigger Screw 203953 AP Manifold 246012 AP Side Seals AP A Side Seal Cartridge 246349 AP B Side Seal Cartridge 246350 AP B Check Valve 246359 AP Trigger, Safety, Air Valve Oring (10 Pack) 246354 AP Manifold Manual Valve 246356 AP Check Valve 80 Mesh Filter 246359 AP Front Housing 246491 AP A Check Valve 246731 AP Side Seals Orings (25 Pack) 248128 AP Check Valve Body Oring 248129 AP Side Seal Cartridge Orings (25 Pack) 248130 AP Small Front Housing Ring (10 Pack) 248131 AP Large Front Housing Oring 248132 AP Check Valve Manifold Oring 248133 AP Air Piston Small Oring 248134 AP Air Piston Large Ring 246135 AP End Cap Ring 114070 AP Teflon Oring (10 Pack) 248137 AP Front Housing Insert 248860 AP Check Valve Ball 257420 AP Air Cap 15B210 AP Front Retainer Ring 15B211 AP Check Valve Screw 15B214 AP Manifold Spring 15B993 AP Manifold Screw 15B221 AP Grease Nipple Cap 15B689 AP Clean Off Valve 15B223 AP Lock Ring 15B215 AP Mixing Chambers AP Handle 15K365 AP Trigger Handle 15B209 AP Trigger Washer 15C480 AP Air Line 15B772 AP Air Piston 15B203 AP Piston Stop 15B205 AP End Cap 15B204 AP Safety Stop Handle 15B206 APTrigger Piston (Spool Valve) 15B202 AP Air Valve Plug 15B208 AP Air Ball Valve 15B565

Hover to highlight, click to select. Keyboard: Tab through parts, Enter to select.

All parts on this diagram

PartOptions listedFromAction
AP A Check Valve 246731 Cortez-made 2 $69.00
AP A Side Seal Cartridge 246349 Cortez-made 2 $79.00
AP Air Ball Valve 15B565 Genuine OEM 1 $28.10
AP Air Cap 15B210 Cortez-madeGenuine OEM 2 $65.00
AP Air Line 15B772 Genuine OEM 1 $55.75
AP Air Piston 15B203 Genuine OEM 1 $240.50
AP Air Piston Large Ring 246135 Cortez-made 1 $34.00
AP Air Piston Small Oring 248134 Cortez-made 1 $17.00
AP Air Valve Plug 15B208 Genuine OEM 1 $52.75
AP B Check Valve 246359 Cortez-made 2 $69.00
AP B Side Seal Cartridge 246350 Cortez-made 2 $79.00
AP Check Valve 80 Mesh Filter 246359 Cortez-made 2 $34.50
AP Check Valve Ball 257420 Genuine OEM 1 $56.75
AP Check Valve Body Oring 248129 Cortez-made 2 $17.00
AP Check Valve Manifold Oring 248133 Cortez-made 2 $17.00
AP Check Valve Screw 15B214 Cortez-made 1 $20.00
AP Check Valve Spring 117490 Cortez-made 2 $2.95
AP Clean Off Valve 15B223 Genuine OEM 1 $41.40
AP End Cap 15B204 Cortez-made 2 $89.00
AP End Cap Ring 114070 Cortez-made 1 $28.25
AP Front Housing 246491 Genuine OEM 1 $953.00
AP Front Housing Insert 248860 Genuine OEM 1 $41.40
AP Front Retainer Ring 15B211 Cortez-made 1 $70.00
AP Grease Nipple 100846 Genuine OEM 1 $10.90
AP Grease Nipple Cap 15B689 Genuine OEM 1 $36.30
AP Handle 15K365 Genuine OEM 1 $1,615.00
AP Handle Muffler 119626 Cortez-madeGenuine OEM 2 $20.00
AP Handle Plug 100721 Genuine OEM 1 $23.50
AP Large Front Housing Oring 248132 Cortez-made 2 $22.50
AP Lock Ring 15B215 Cortez-made 1 $57.50
AP Lock Ring Spring 116550 Genuine OEM 1 $15.70
AP Manifold 246012 Genuine OEM 1 $744.00
AP Manifold A Side Swivel 117635 Genuine OEM 1 $22.70
AP Manifold B Side Swivel 117634 Genuine OEM 1 $22.70
AP Manifold Manual Valve 246356 Cortez-madeGenuine OEM 2 $69.50
AP Manifold Plug 100139 Genuine OEM 1 $10.70
AP Manifold Screw 15B221 Genuine OEM 1 $37.70
AP Manifold Spring 15B993 Genuine OEM 1 $68.25
AP Mixing Chambers Cortez-madeGenuine OEM 11 $149.00
AP Piston Stop 15B205 Cortez-made 1 $16.50
AP Quick Connect - Female 117510 Genuine OEM 1 $73.00
AP Quick Connect - Male 117509 Genuine OEM 1 $22.70
AP Safety Spring 114070 Cortez-made 2 $13.50
AP Safety Stop Handle 15B206 Cortez-made 1 $40.00
AP Side Seal Cartridge Orings (25 Pack) 248130 Cortez-made 2 $17.00
AP Side Seals Cortez-madeOrigin not listed 4 $28.00
AP Side Seals Orings (25 Pack) 248128 Cortez-made 2 $17.00
AP Side Seals Spring 117491 Cortez-made 2 $4.10
AP Small Front Housing Ring (10 Pack) 248131 Cortez-made 2 $17.00
AP Teflon Oring (10 Pack) 248137 Cortez-made 1 $34.00
AP Trigger Handle 15B209 Genuine OEM 1 $85.50
AP Trigger Pin 192272 Genuine OEM 1 $39.70
AP Trigger Screw 203953 Genuine OEM 1 $7.10
AP Trigger Spring 117485 Cortez-made 2 $4.25
AP Trigger Washer 15C480 Genuine OEM 1 $31.60
AP Trigger, Safety, Air Valve Oring (10 Pack) 246354 Cortez-made 2 $13.00
APTrigger Piston (Spool Valve) 15B202 Genuine OEM 1 $41.40

Cortez Industries is not an authorized distributor of Graco Inc. Diagram part numbers identify the part position only.
