PC gun parts

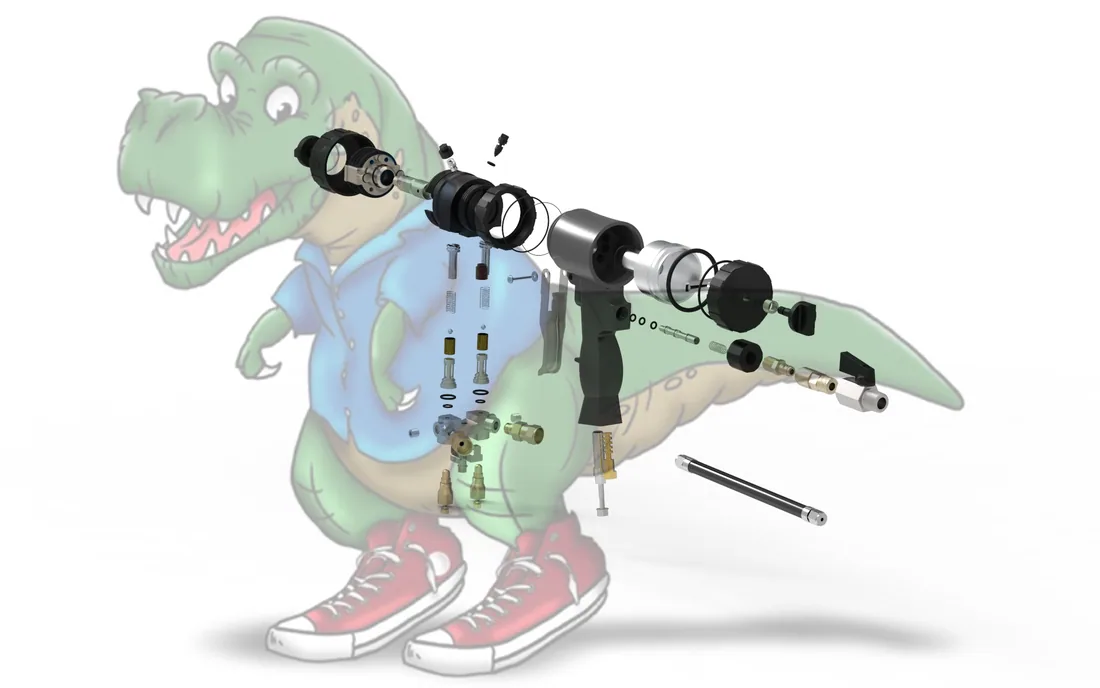

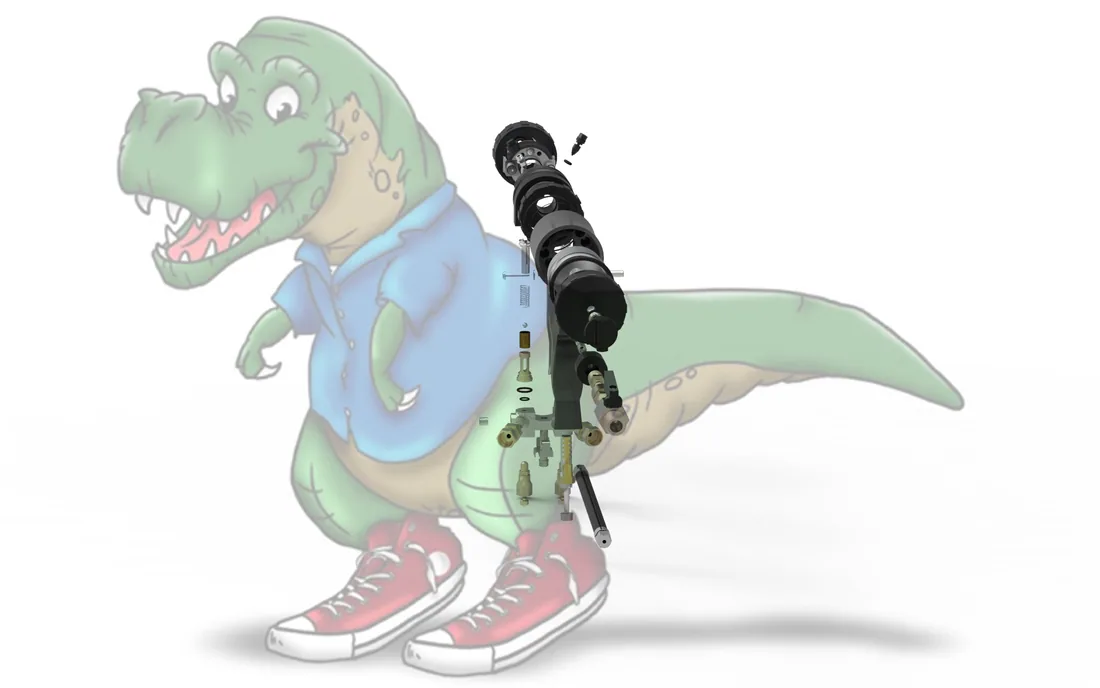

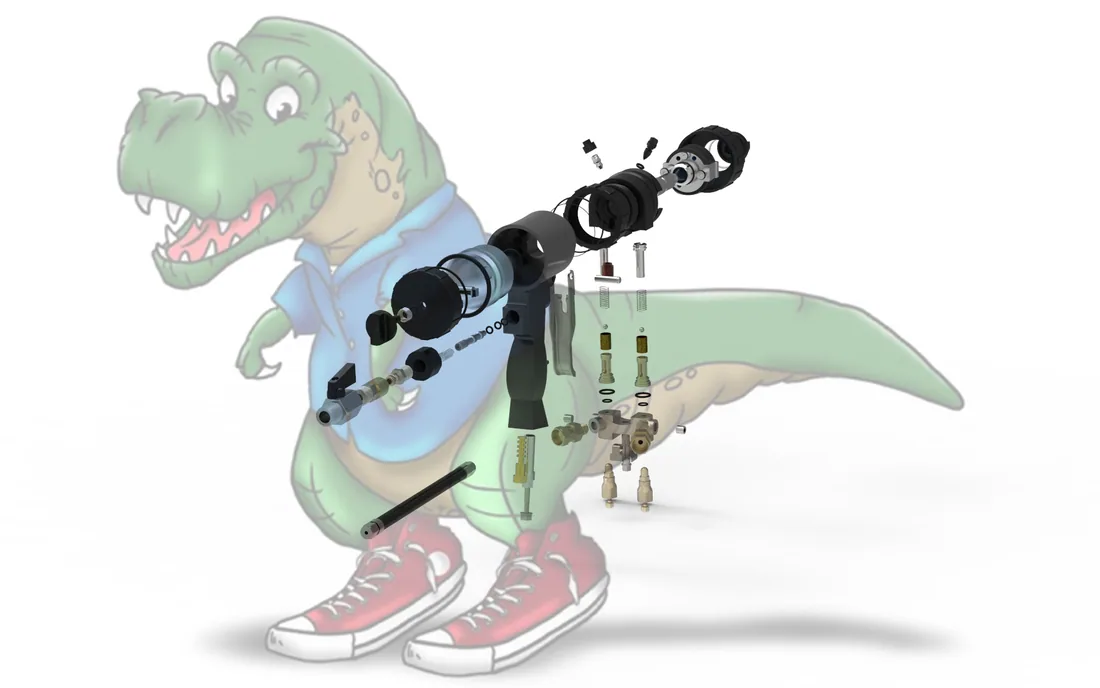

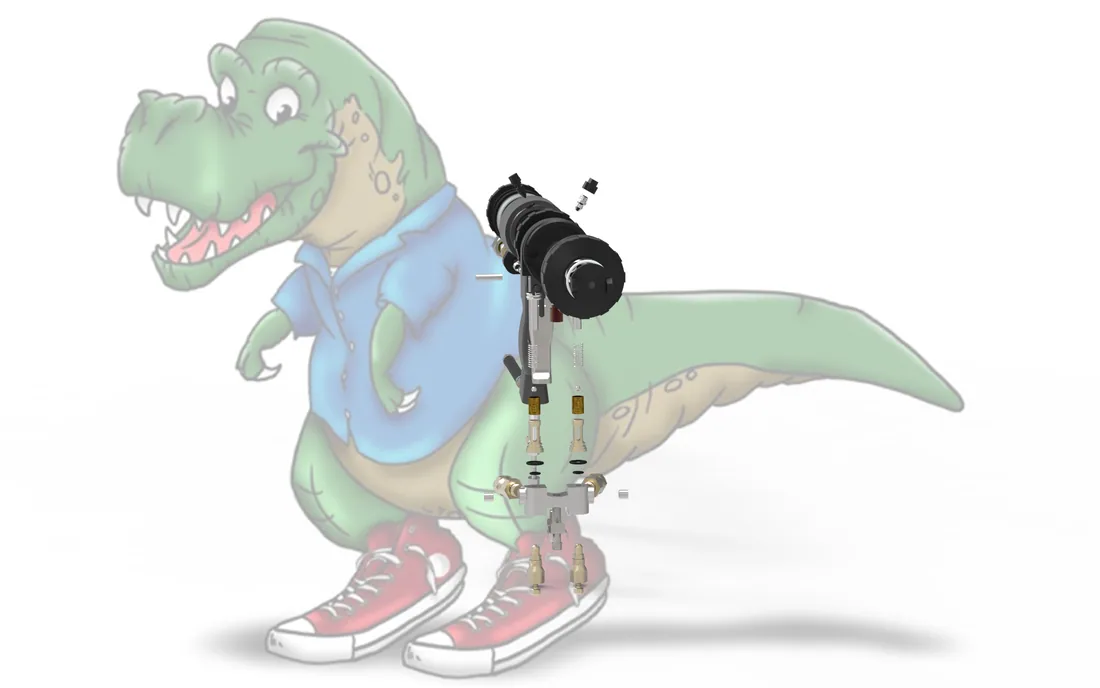

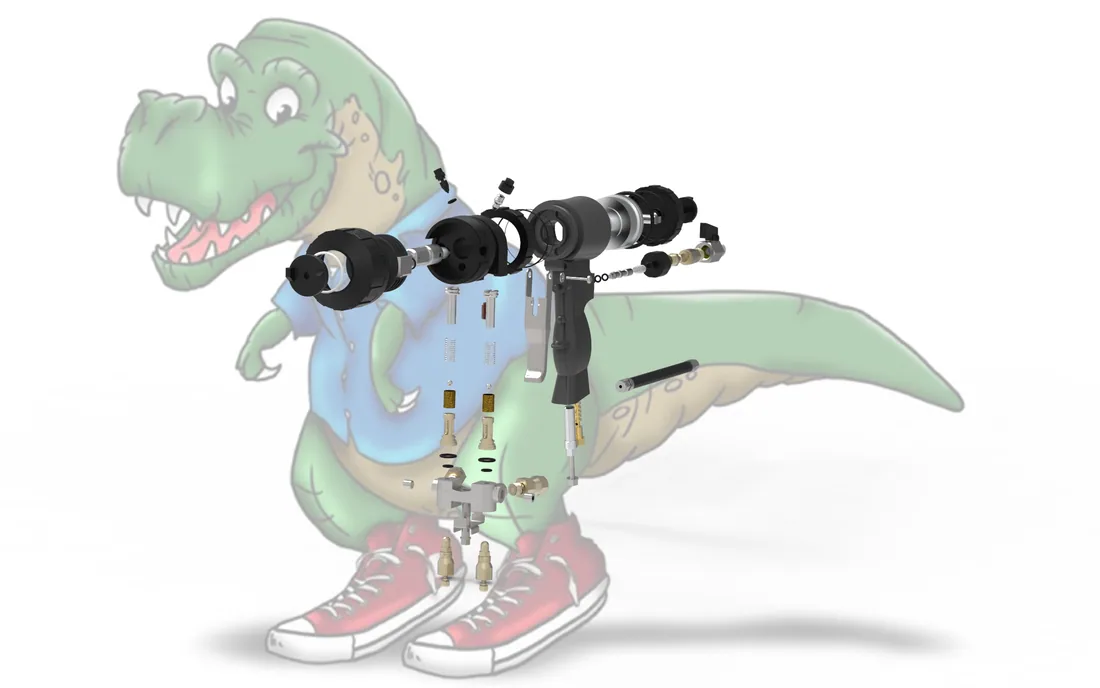

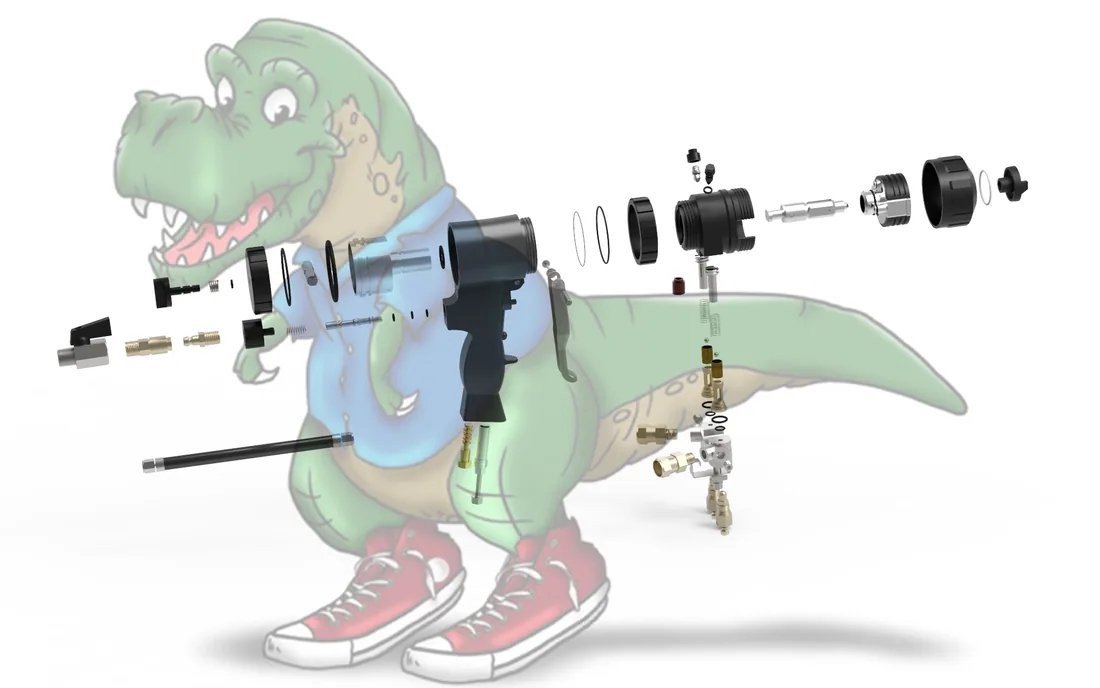

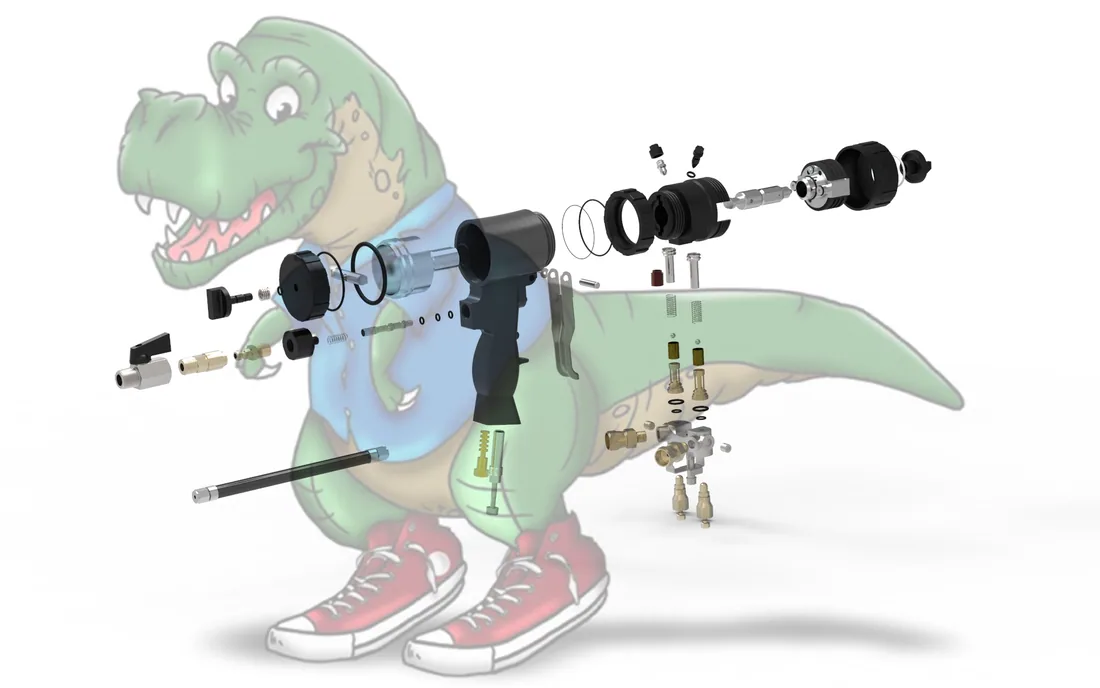

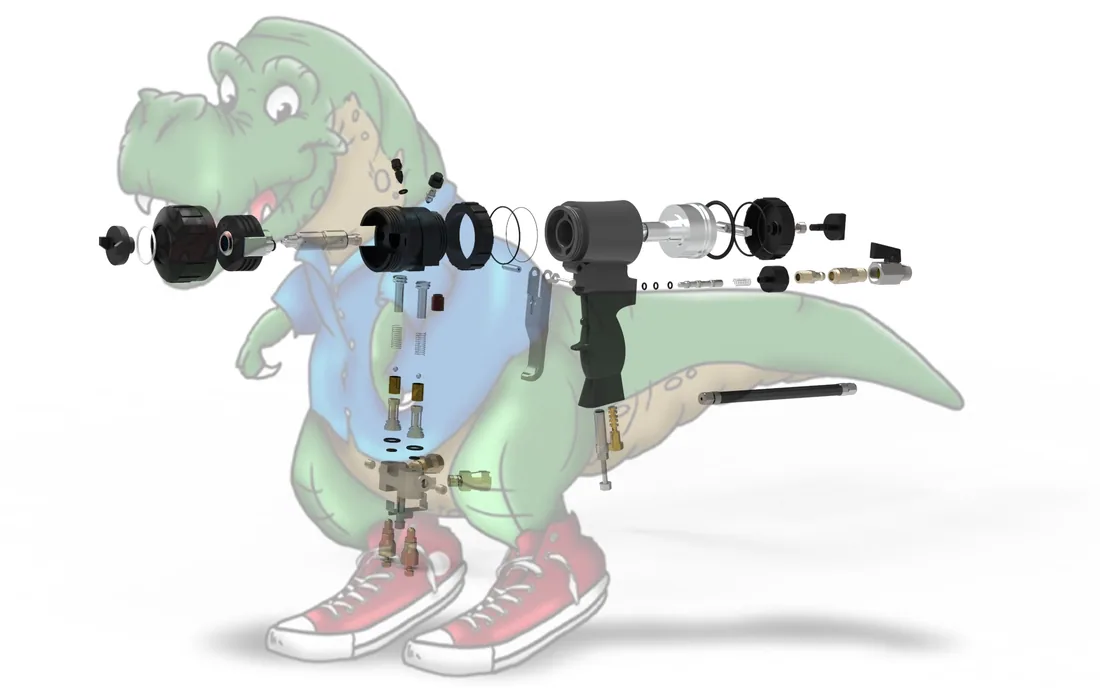

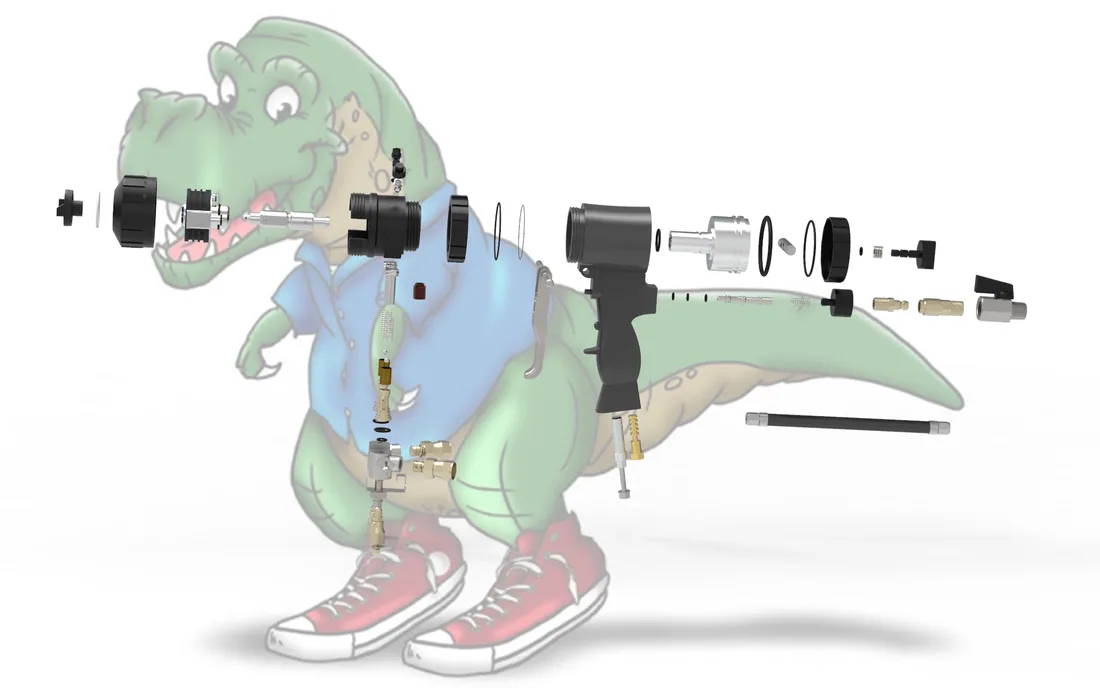

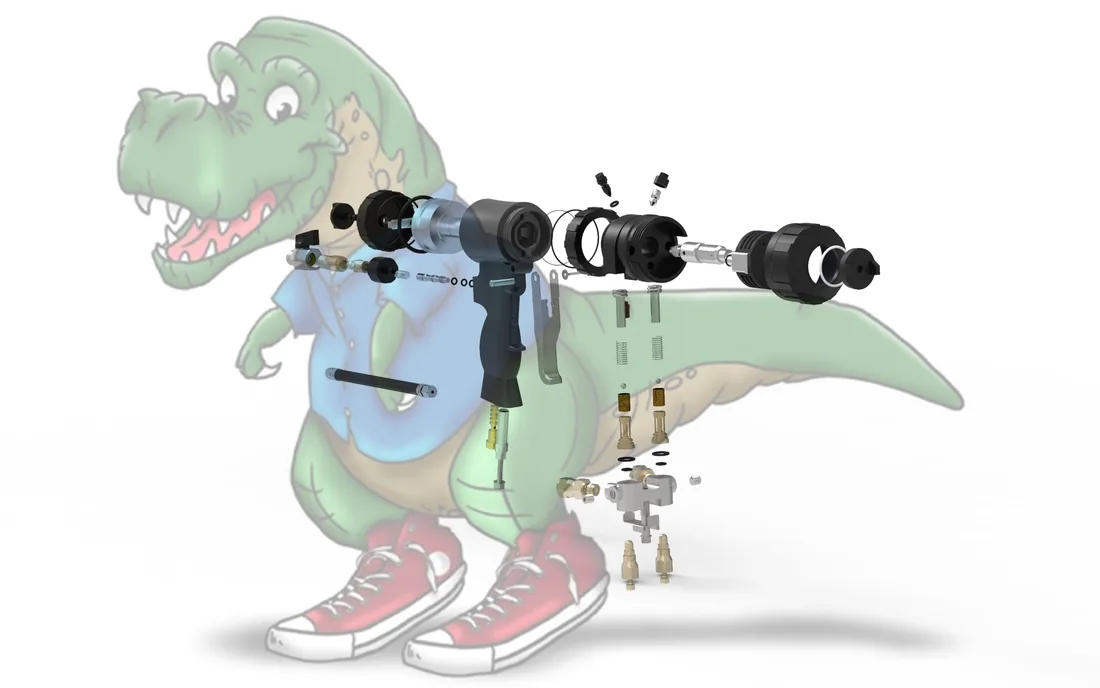

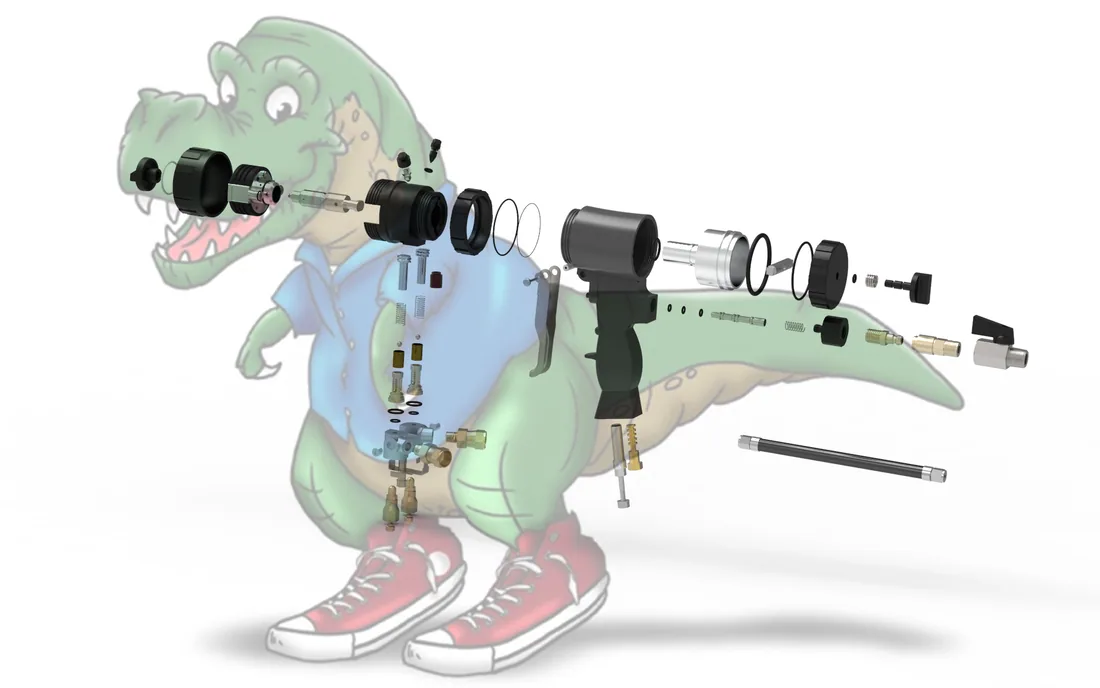

Same as the AP view: pick a part to see what Cortez lists for it. Turn the gun with the arrows to get at the cartridge, chamber and front-end parts.

Labelled

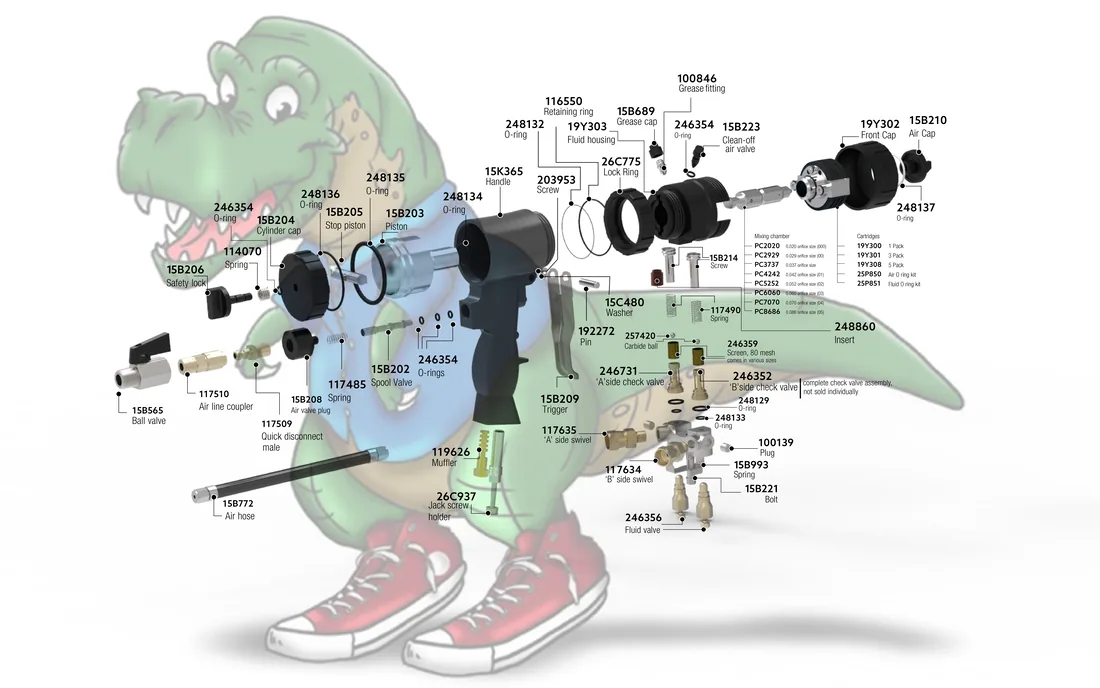

PC gun parts, labelled exploded view AP Manifold Plug 100139 AP Grease Nipple 100846 AP Safety Spring 114070 AP Trigger Spring 117485 AP Check Valve Spring 117490 AP Quick Connect - Male 117509 AP Quick Connect - Female 117510 AP Manifold B Side Swivel 117634 AP Manifold A Side Swivel 117635 AP Handle Muffler 119626 AP Trigger Pin 192272 AP Trigger Screw 203953 AP Manifold 246012 AP B Check Valve 246359 AP Trigger, Safety, Air Valve Oring (10 Pack) 246354 AP Manifold Manual Valve 246356 AP Check Valve 80 Mesh Filter 246359 AP A Check Valve 246731 AP Check Valve Body Oring 248129 AP Check Valve Manifold Oring 248133 AP Air Piston Small Oring 248134 AP Air Piston Large Ring 246135 AP End Cap Ring 114070 AP Front Housing Insert 248860 AP Check Valve Ball 257420 PC Air Cap 15B210 PC Teflon Oring (10 Pack) 248137 PC Retainer Ring 19Y302 PC Cartridges PC Mixing Chambers AP Grease Nipple Cap 15B689 PC Clean Off Valve 15B223 PC Front Housing PC Lock Ring 26C775 PC Lock Ring Spring - 116550 PC Large Front Housing Oring - 248132 AP Check Valve Screw 15B214 AP Manifold Spring 15B993 AP Manifold Screw 15B221 PC Handle 15K365 AP Trigger Handle 15B209 AP Trigger Washer 15C480 PC Jack Screw Holder Kit - 26C937 AP Air Piston 15B203 AP Piston Stop 15B205 AP End Cap 15B204 AP Safety Stop Handle 15B206 APTrigger Piston (Spool Valve) 15B202 AP Air Valve Plug 15B208 AP Air Ball Valve 15B565 AP Air Line 15B772

Hover to highlight, click to select. Keyboard: Tab through parts, Enter to select.

All parts on this diagram

PartOptions listedFromAction
AP A Check Valve 246731 Cortez-made 2 $69.00
AP Air Ball Valve 15B565 Genuine OEM 1 $28.10
AP Air Line 15B772 Genuine OEM 1 $55.75
AP Air Piston 15B203 Genuine OEM 1 $240.50
AP Air Piston Large Ring 246135 Cortez-made 1 $34.00
AP Air Piston Small Oring 248134 Cortez-made 1 $17.00
AP Air Valve Plug 15B208 Genuine OEM 1 $52.75
AP B Check Valve 246359 Cortez-made 2 $69.00
AP Check Valve 80 Mesh Filter 246359 Cortez-made 2 $34.50
AP Check Valve Ball 257420 Genuine OEM 1 $56.75
AP Check Valve Body Oring 248129 Cortez-made 2 $17.00
AP Check Valve Manifold Oring 248133 Cortez-made 2 $17.00
AP Check Valve Screw 15B214 Cortez-made 1 $20.00
AP Check Valve Spring 117490 Cortez-made 2 $2.95
AP End Cap 15B204 Cortez-made 2 $89.00
AP End Cap Ring 114070 Cortez-made 1 $28.25
AP Front Housing Insert 248860 Genuine OEM 1 $41.40
AP Grease Nipple 100846 Genuine OEM 1 $10.90
AP Grease Nipple Cap 15B689 Genuine OEM 1 $36.30
AP Handle Muffler 119626 Cortez-madeGenuine OEM 2 $20.00
AP Manifold 246012 Genuine OEM 1 $744.00
AP Manifold A Side Swivel 117635 Genuine OEM 1 $22.70
AP Manifold B Side Swivel 117634 Genuine OEM 1 $22.70
AP Manifold Manual Valve 246356 Cortez-madeGenuine OEM 2 $69.50
AP Manifold Plug 100139 Genuine OEM 1 $10.70
AP Manifold Screw 15B221 Genuine OEM 1 $37.70
AP Manifold Spring 15B993 Genuine OEM 1 $68.25
AP Piston Stop 15B205 Cortez-made 1 $16.50
AP Quick Connect - Female 117510 Genuine OEM 1 $73.00
AP Quick Connect - Male 117509 Genuine OEM 1 $22.70
AP Safety Spring 114070 Cortez-made 2 $13.50
AP Safety Stop Handle 15B206 Cortez-made 1 $40.00
AP Trigger Handle 15B209 Genuine OEM 1 $85.50
AP Trigger Pin 192272 Genuine OEM 1 $39.70
AP Trigger Screw 203953 Genuine OEM 1 $7.10
AP Trigger Spring 117485 Cortez-made 2 $4.25
AP Trigger Washer 15C480 Genuine OEM 1 $31.60
AP Trigger, Safety, Air Valve Oring (10 Pack) 246354 Cortez-made 2 $13.00
APTrigger Piston (Spool Valve) 15B202 Genuine OEM 1 $41.40
PC Air Cap 15B210 Cortez-madeGenuine OEM 2 $65.00
PC Cartridges Genuine OEM 3 $318.00
PC Clean Off Valve 15B223 Genuine OEM 1 $41.40
PC Front Housing Genuine OEM 3 $751.00
PC Handle 15K365 Genuine OEM 1 $1,615.00
PC Jack Screw Holder Kit - 26C937 Genuine OEM 1 $64.25
PC Large Front Housing Oring - 248132 Cortez-made 2 $22.50
PC Lock Ring 26C775 Cortez-made 1 $140.50
PC Lock Ring Spring - 116550 Genuine OEM 1 $15.70
PC Mixing Chambers Cortez-madeGenuine OEM 11 $209.00
PC Retainer Ring 19Y302 Genuine OEM 1 $294.50
PC Teflon Oring (10 Pack) 248137 Cortez-made 1 $34.00

Cortez Industries is not an authorized distributor of Graco Inc. Diagram part numbers identify the part position only.
