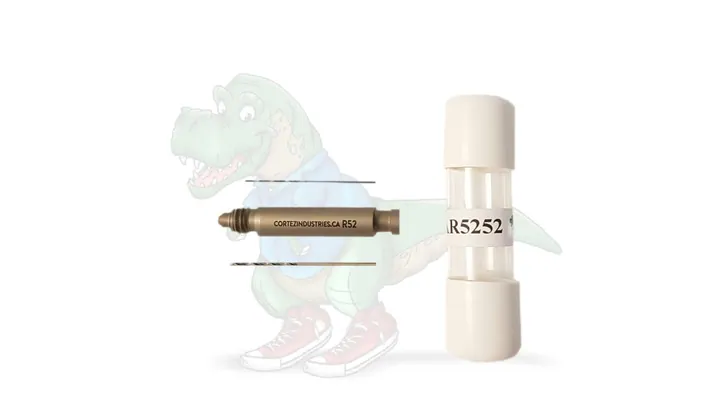

AR5252 (02) Mixing Chamber
Part no. AR5252
$149.00CAD
Cortez-made
Made for or by Cortez Industries (including TAILORMADE and DINO products), not by the equipment manufacturer.
Listed by Cortez under AP gun
Order on the current Cortez store Ask about this part
Preview: this design isn't connected to a cart yet. The order button opens this same part on cortezindustries.ca, where the existing cart and checkout take the order.
Not sure it's the right part? Call 905-301-4152
Shown on the AP gun diagram
Details
This is a top quality mixing chamber. This chamber was designed to work with the AP Gun. This chamber has a round pattern, with .52 orifices. It has a 12 inch spray pattern, when you are 2 feet from your target. The output of this chamber is 14lbs/min. This chamber is great for wide open jobs. It allows you to put a lot of foam on sub-straights fairly quickly, compared to the other chambers. This chamber is not recommended for wall cavities, or machines that are E-20 size or smaller. (The heaters have a hard time keeping up to the output of the chamber)
Cortez Industries is not an authorized distributor of Graco Inc.
